Docker Log Aggregation: Deploying Grafana with Loki Integration

Grafana is an open-source software used for analytics and data logging. One of the more common uses for Grafana is visualization, organization, and monitoring of data.

I'm using Grafana and Loki to ingress logging data from both Docker container log output using the docker Loki plugin.

Getting started

One of the quickest methods to get up and running with Grafana and Loki is to run a containerized setup. This tutorial requires that you have a running Docker environment.

A quick docker environment setup

apt-get update
apt-get install curl
curl -fsSL https://get.docker.com -o get-docker.sh
sh get-docker.sh

If this quick setup doesn't fit your environment, check out https://docs.docker.com/engine/install/.

Install the docker driver for Grafana Loki:

docker plugin install grafana/loki-docker-driver:2.9.1 --alias loki --grant-all-permissions

docker plugin enable loki

...
$ docker plugin ls
ID                  NAME         DESCRIPTION           ENABLED
ac720b8fcfdb        loki         Loki Logging Driver   true
...

This plugin is required on any container host that will be sending container logs from Docker to Loki using the built in docker logging.

Get Grafana and Loki running with docker compose:

Create a directory for your configuration and docker compose file to live in and enter it:

mkdir -p /opt/loki
cd /opt/loki
nano docker-compose.yml

Change your timezone: https://en.wikipedia.org/wiki/List_of_tz_database_time_zones

services:
  loki:
    container_name: loki
    image: grafana/loki:latest
    environment:
      - TZ=America/New_York
    ports:
      - "3100:3100"
    command: -config.file=/etc/loki/local-config.yaml
    volumes:
      - ./loki-config:/etc/loki
      - ./lokistore:/lokistore
  grafana:
    container_name: grafana
    image: grafana/grafana:latest
    environment:
      - TZ=America/New_York
    ports:
      - "3000:3000"
    volumes:
      - ./grafana-config/datasource.yml:/etc/grafana/provisioning/datasources/datasource.yml
      - grafana-storage:/var/lib/grafana
volumes:
  grafana-storage: {}

Create ./grafana-config/datasource.yml

cd /opt/loki
mkdir -p ./grafana-config
cd grafana-config
nano datasource.yml

# config file version
apiVersion: 1

deleteDatasources:
  - name: loki

datasources:
- name: loki
  type: loki
  access: proxy
  orgId: 1
  url: http://loki:3100
  basicAuth: false
  isDefault: true
  version: 1
  editable: false

Create ./loki-config/local-config.yaml

cd /opt/loki
mkdir -p ./loki-config
cd ./loki-config
nano local-config.yaml

auth_enabled: false
server:
  http_listen_port: 3100

common:
  path_prefix: /loki
  storage:
    filesystem:
      chunks_directory: /lokistore/chunks
      rules_directory: /lokistore/rules
  replication_factor: 1
  ring:
    kvstore:
      store: inmemory

query_range:
  parallelise_shardable_queries: true

compactor:
  working_directory: /lokistore/compactor
  compaction_interval: 10m
  retention_enabled: true
  retention_delete_delay: 2h
  retention_delete_worker_count: 150
  delete_request_cancel_period: 24h
  delete_request_store: filesystem

limits_config:
  retention_period: 8760h
  split_queries_by_interval: 24h
  max_query_length: 2160h
  allow_structured_metadata: false

schema_config:
  configs:
    - from: 2023-11-02
      store: tsdb
      object_store: filesystem
      schema: v13
      index:
        prefix: index_
        period: 24h

storage_config:
  boltdb:
    directory: /lokistore/index
  filesystem:
    directory: /lokistore/chunks
  boltdb_shipper:
    active_index_directory: /lokistore/index
    cache_location: /lokistore/boltdb-cache
    cache_ttl: 24h

ruler:
  storage:
    type: local
    local:
      directory: /lokistore/rules
  rule_path: /tmp/loki/rules-temp
  alertmanager_url: http://alertmanager:9093
  ring:
    kvstore:
      store: inmemory
  enable_api: true
  enable_alertmanager_v2: true

analytics:
  reporting_enabled: false

Bring your new compose project up:

cd /opt/loki
docker compose up -d

Your output should look as follows:

[+] Running 3/3
 ✔ Network loki_default  Created
 ✔ Container grafana     Started
 ✔ Container loki        Started

Add the logging driver to a container with compose:

If you are adding this logging driver to a container on a host outside of your localhost, be sure to change loki-url IP address to the IP address of the host running Loki and Grafana.

    logging:
      driver: loki
      options:
        loki-url: "http://loki-endpoint:3100/loki/api/v1/push"
        loki-external-labels: job=dockerlogs,owner=docker,environment=development

After adding the logging driver to your container, run "docker compose up -d".

Add the logging driver to a container without compose:

Use the --log-driver and --log-opt flags to accomplish this.

  --log-driver=loki \
  --log-opt loki-url=http://loki-endpoint:3100/loki/api/v1/push \

A full run command may look like this:

docker run \
  --name nginx-server \
  --log-driver=loki \
  --log-opt loki-url=http://loki-endpoint:3100/loki/api/v1/push \
  -p 80:80 \
  nginx:latest

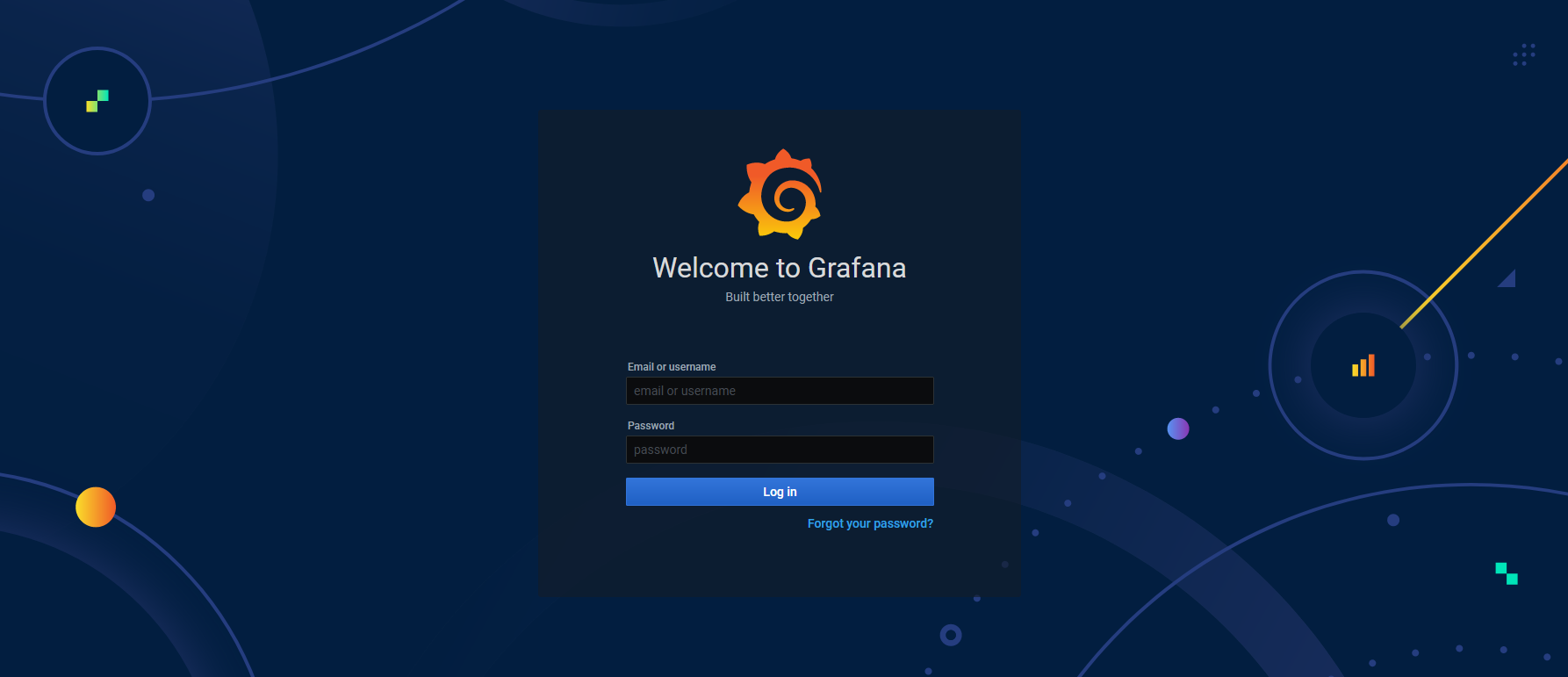

Grafana first-run

Use your favorite browser. Navigate to: http://container-host-ip:3000

Use the Grafana default login: admin/admin.

Set a new password. The storage is set to persist, so your credentials should persist.

Explore your data

Navigate to Explore > Log labels > Select a label for the container or containers you added logging for.
